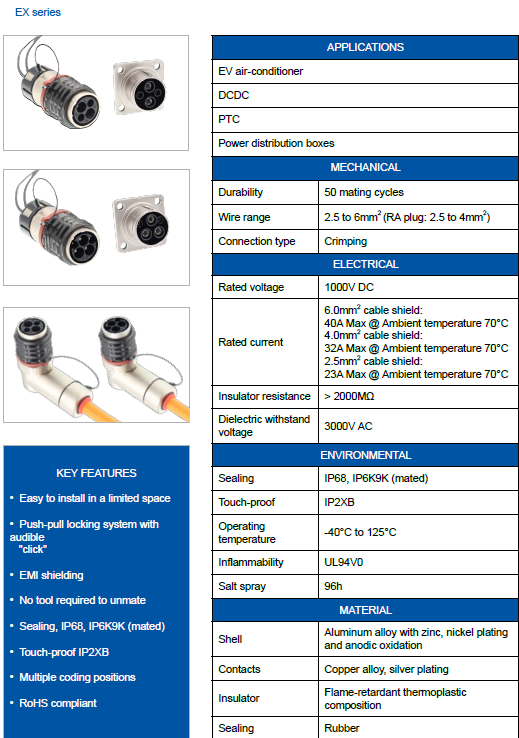

RECEPTACLE, 40A MAX, 2(POWER)+2(SIGNAL) PIN, ALTERNATE POSITION A/B/C/D/E
RATED CURRENT:
40A@6 MM2 SHIELDED WIRE
32A@4 MM2 SHIELDED WIRE
23A@2.5 MM2 SHIELDED WIRE

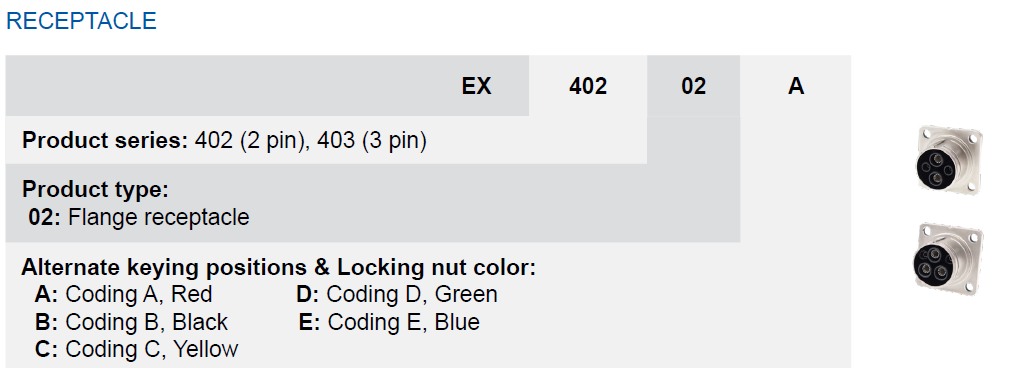

HOW TO ORDER:
RELATED ITEMS
EX402 PLUG INDIVIDUAL
STRAIGHT PLUG, 40A MAX, 2(POWER)+2(SIGNAL) PIN, ALTERNATE POSITION A/B/C/D/E, 2.5 TO 6 MM2 INDIVIDUAL SHIELDED WIRE
EX402 PLUG MULTICORE
PLUG, 40A MAX, 2(POWER)+2(SIGNAL) PIN, 2.5 TO 6 MM2 MULTICORE SHIELDED WIRE, ALTERNATE POSITION A/B/C/D/E
EX402 RA PLUG MULTICORE
RIGHT ANGLE PLUG, 2+2 PIN, 40A MAX, CABLE OD 10.9 TO 11.8MM MULTICORE SHIELDED WIRE
