HVSL1000 IN-LINE RECEPTACLE

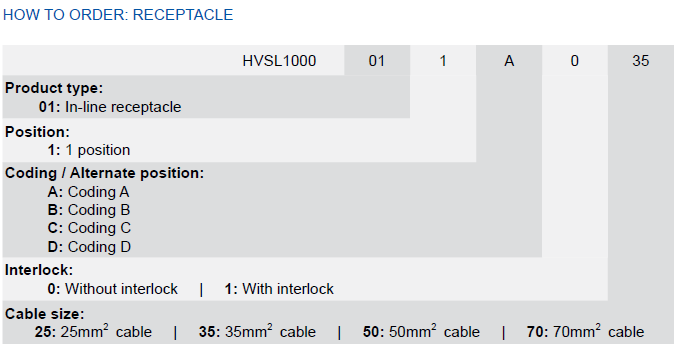

part number:

HVSL1000011XXXX

datasheet:

view / download

specifications:

connection:

crimp

current:

150A 180A 250A 120A

housing:

plastic

IP Rating:

IP67 IP6K9K

market:

electric vehicle

positions:

product type:

power connector

series:

hvsl

voltage:

1000V

DESCRIPTION

250A MAX, IN-LINE RECEPTACLE, 1 PIN, ALTERNATE POSITION A/B/C/D

RATED CURRENT:
250A@70MM2 SHIELDED CABLE
180A@50MM2 SHIELDED CABLE
150A@35MM2 SHIELDED CABLE
120A@25MM2 SHIELDED CABLE
